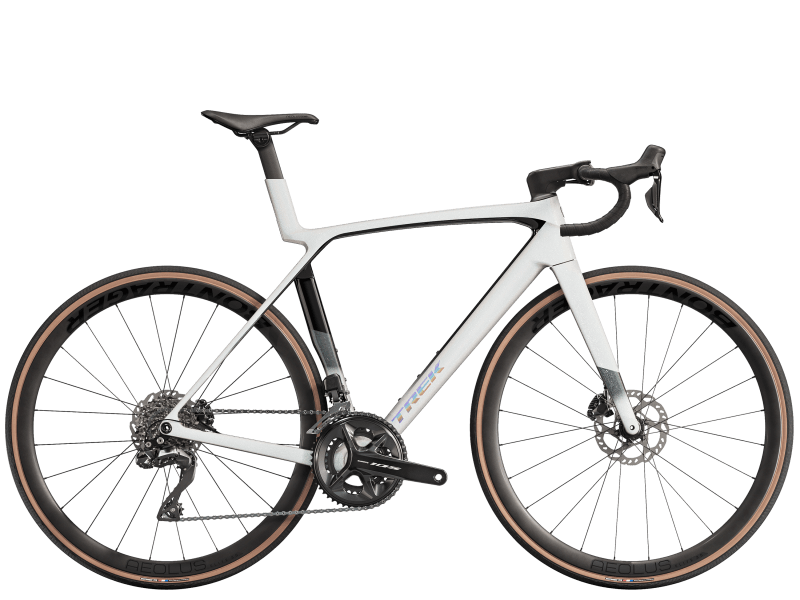

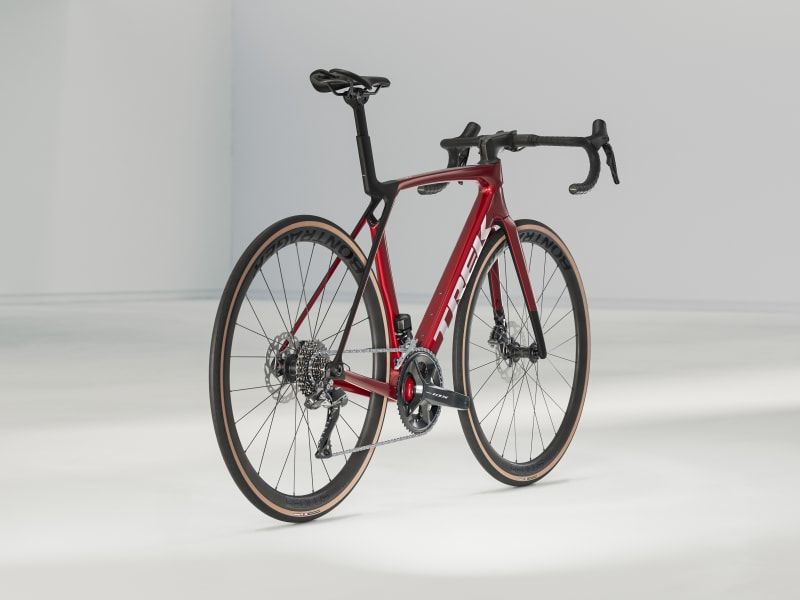

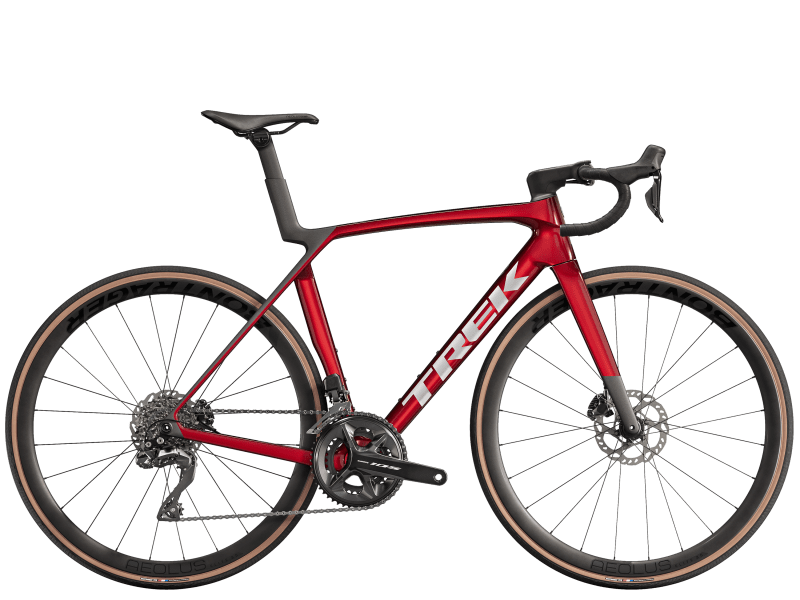

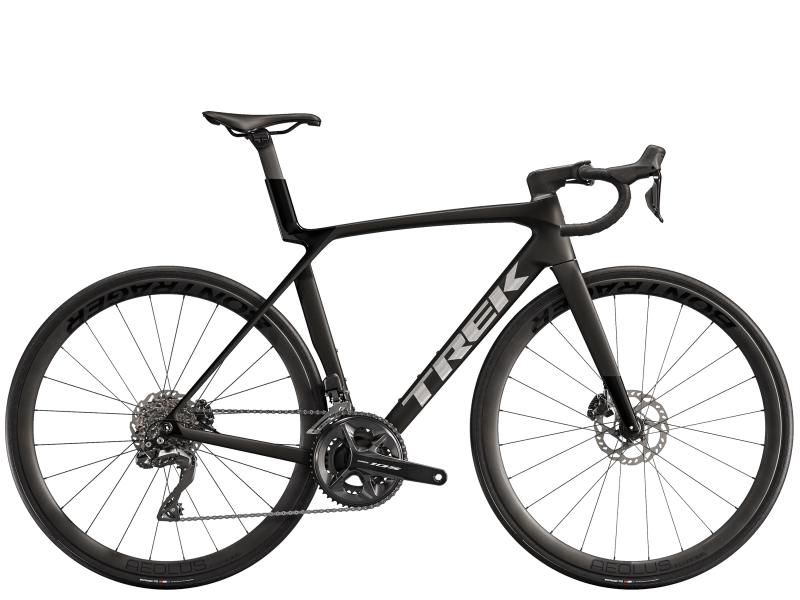

Trek Madone SL6 gen 8

140,000,000₫

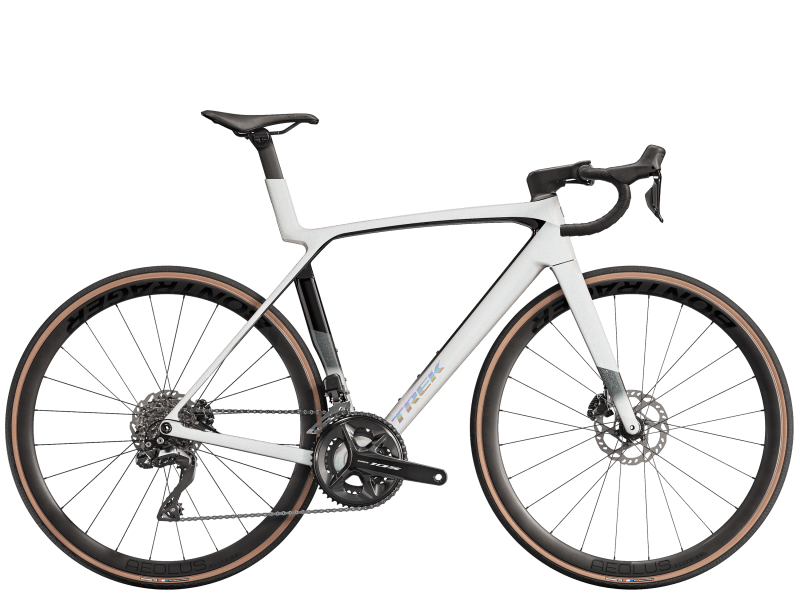

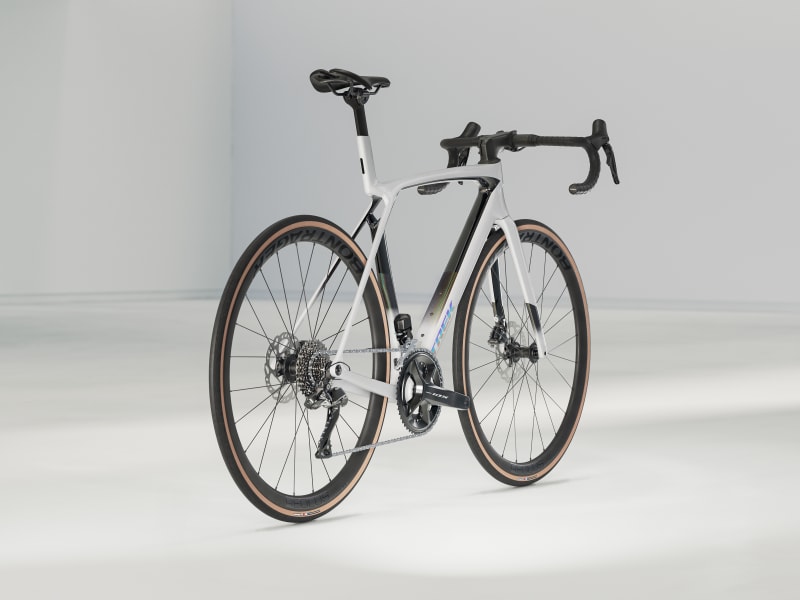

TRẮNG

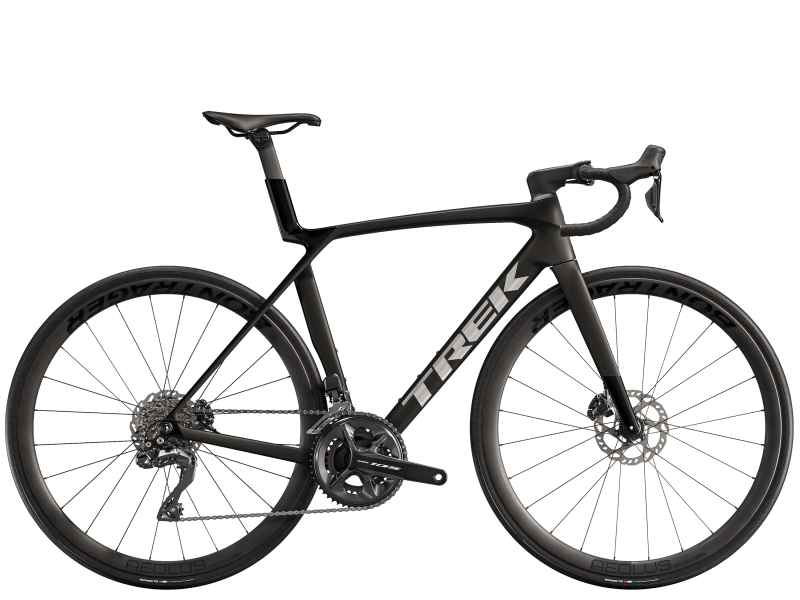

ĐEN

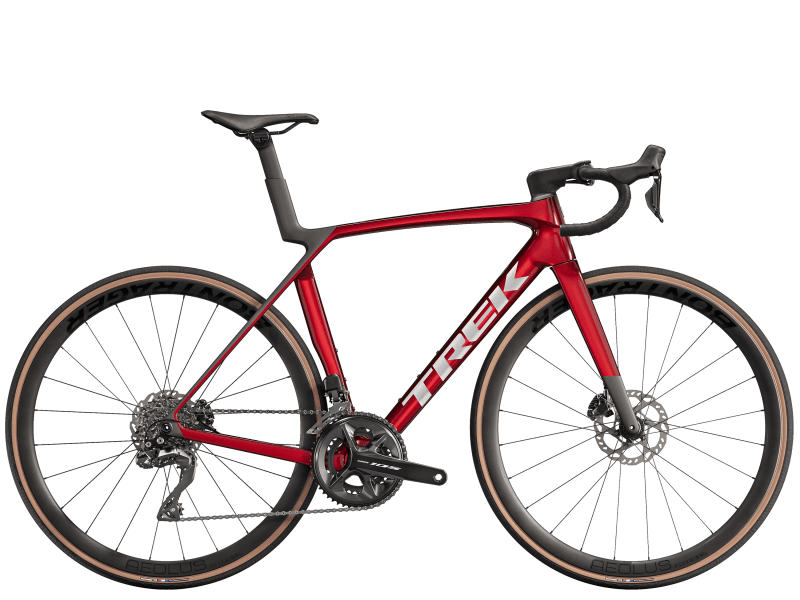

ĐỎ

Mô tả

It's right for you if...

You want a featherweight road race bike without top-end race pricing. You're up for racing, club rides, or solo spins up winding canyons, and don't want to compromise between climbing efficiency and aerodynamics. You love the workhorse performance of Shimano's 105 groupset, but want the added benefit of Di2 lightning-fast electronic shifting.

The tech you get

An ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology. A 2x12 Shimano 105 Di2 electronic groupset that delivers clean shifts thanks to trickle-down tech. Plus, it's topped off with Bontrager Aeolus Elite 35 carbon wheels that come set up tubeless.

The final word

Madone SL 6 Gen 8 delivers race-worth aerodynamics and climb crushing weight. It's a bonafide superbike in a more economical package, thanks to its 500-Series OCLV Carbon layup and workhorse Di2 groupset. It offers the same frame tech as its SLR sibling, like aero tube shaping and lightweight IsoFlow comfort tech, so you can stay at the front of the pack.

The Walkthrough

Why you'll love it

Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs
Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
You get lightning-fast shifts that stay crisp and clean thanks to Shimano's Di2 tech trickling down to their 105 groupset

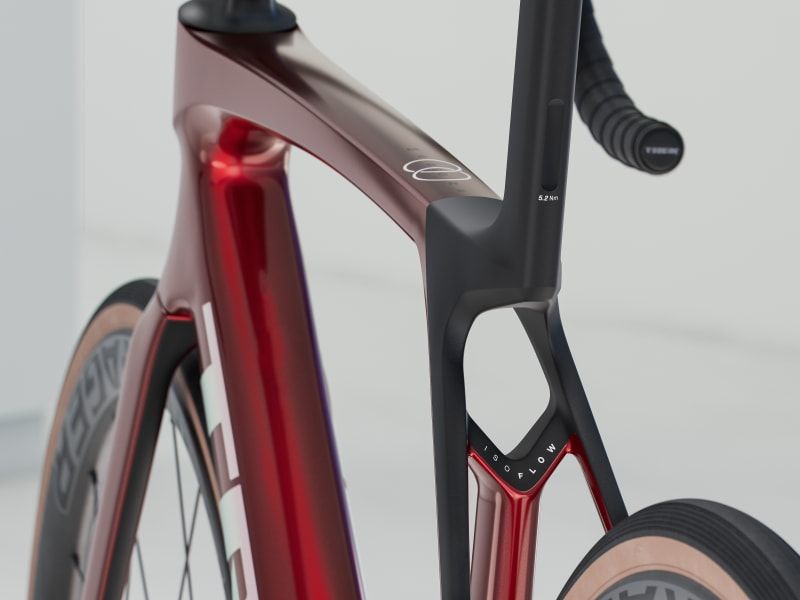

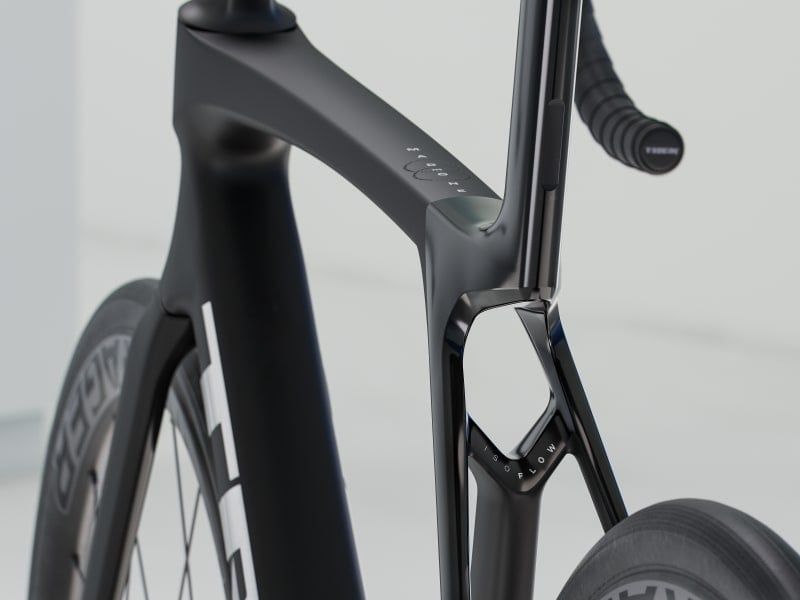

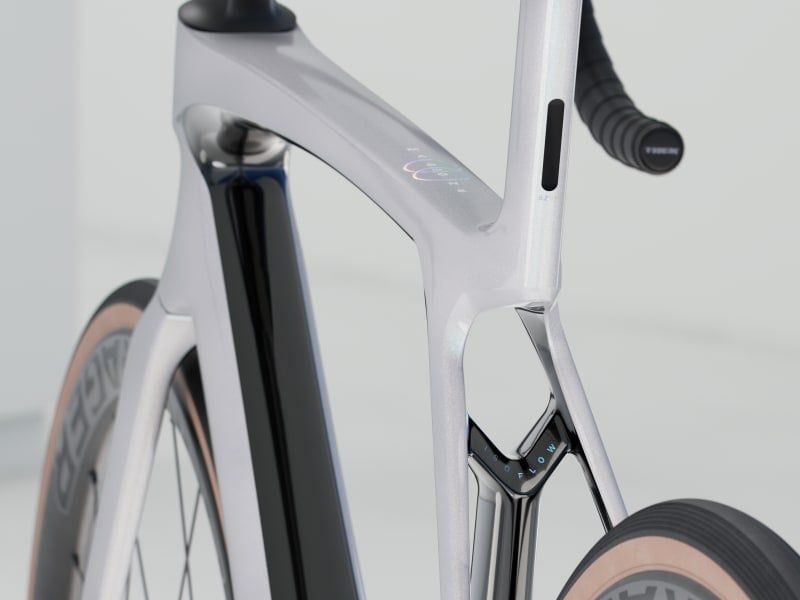

Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics
This bike comes set up tubeless — a first in Trek performance road history

Frame	500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Wheels

Wheel front	Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
Wheel rear	Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, Shimano 11/12-speed freehub, 142x12mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Tire	Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28mm
Tire part	Bontrager TLR sealant, 6oz
Rim strip	Bontrager TLR
Max tire size	32mm (as measured, see manual for details)

E-system

Battery	Shimano BT-DN300
Charger	Charging cable included

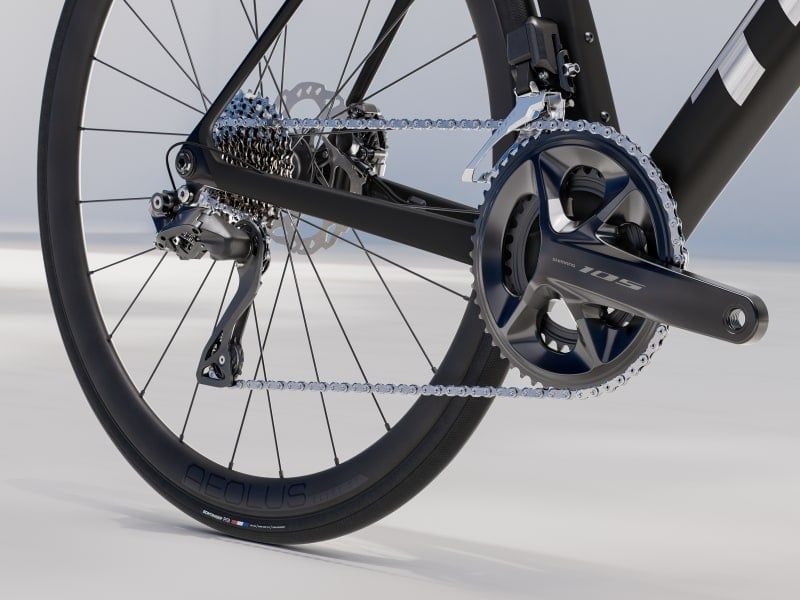

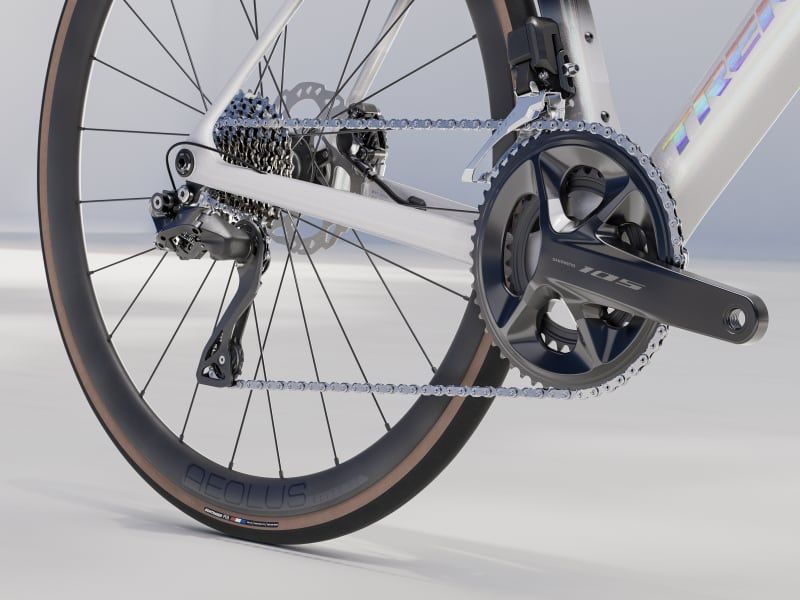

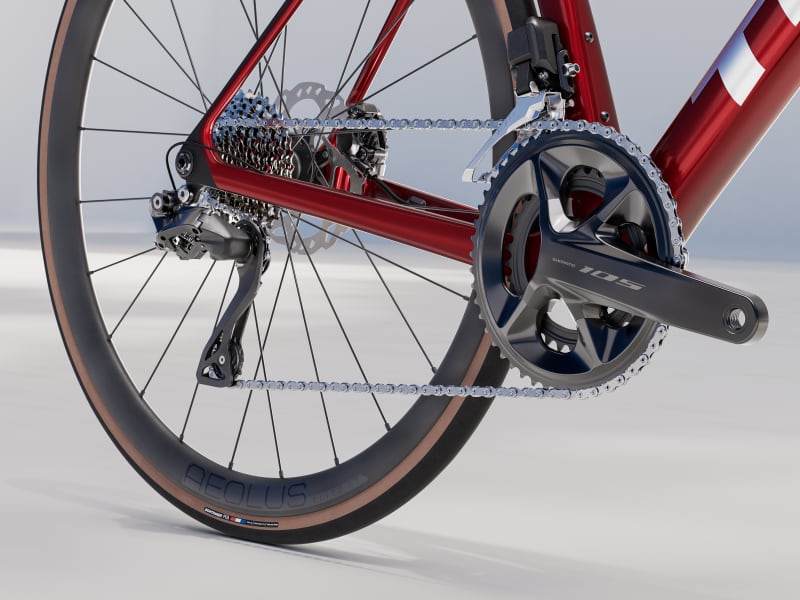

Drivetrain

Shifter	Shimano 105 R7170 Di2, 12 speed
Front derailleur	Shimano 105 R7150 Di2, braze-on, down swing
Rear derailleur	Shimano R7150 Di2, 36T max cog
*Crank	Size: XS, S Shimano 105 R7100, 50/34, 165mm length
	Size: M Shimano 105 R7100, 50/34, 170mm length
	Size: ML, L Shimano 105 R7100, 50/34, 172.5mm length
	Size: XL Shimano 105 R7100, 50/34, 175mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 7101, 11-34, 12 speed
Chain	Shimano SLX M7100, 12 speed
Max chainring size	1x: 54T, 2x: 56/43

Components

*Saddle	Size: XS, S Bontrager Aeolus Comp, steel rails, 155mm width
	Size: XS, S, M, ML, L, XL Verse Short, steel rails, 145mm width
	Size: M, ML, L, XL Bontrager Aeolus Comp, steel rails, 145mm width
*Seatpost	Size: XS, S, M Madone aero carbon seatpost, 0mm offset, short length
*Seatpost	Size: ML, L, XL Madone aero carbon seatpost, 0mm offset, long length

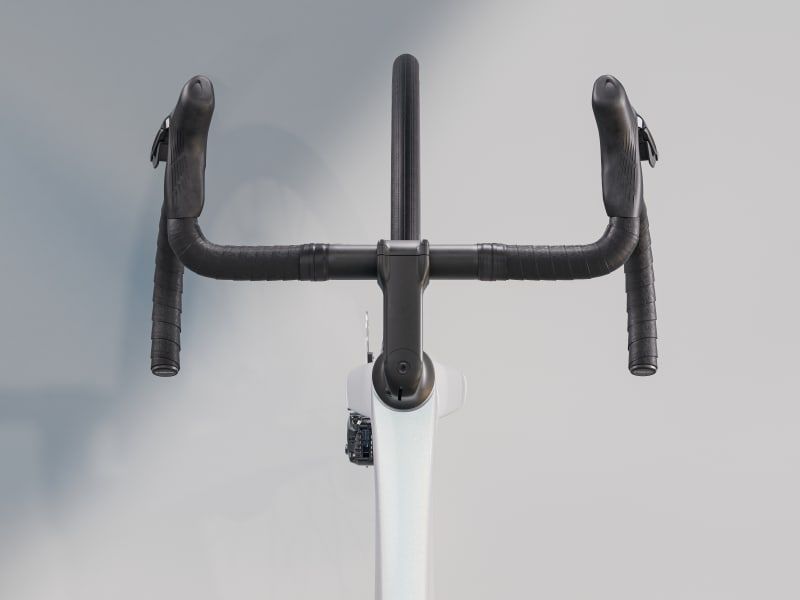

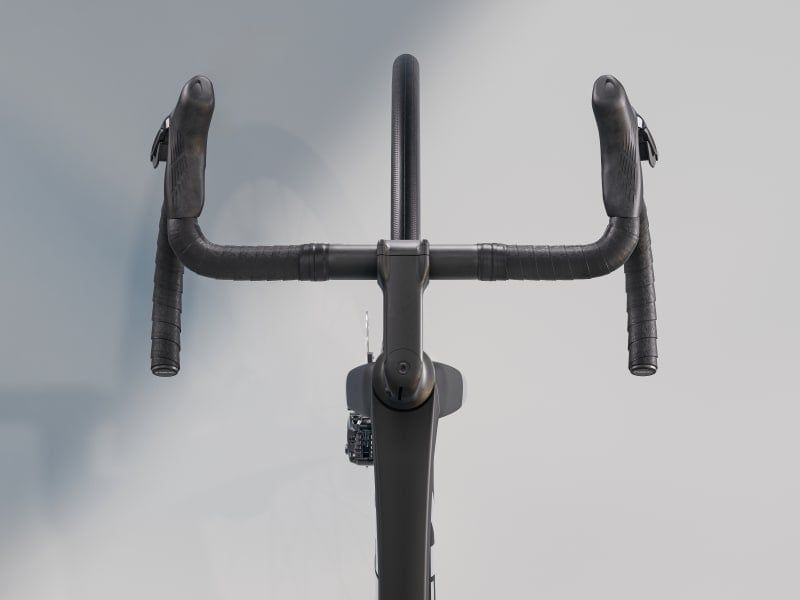

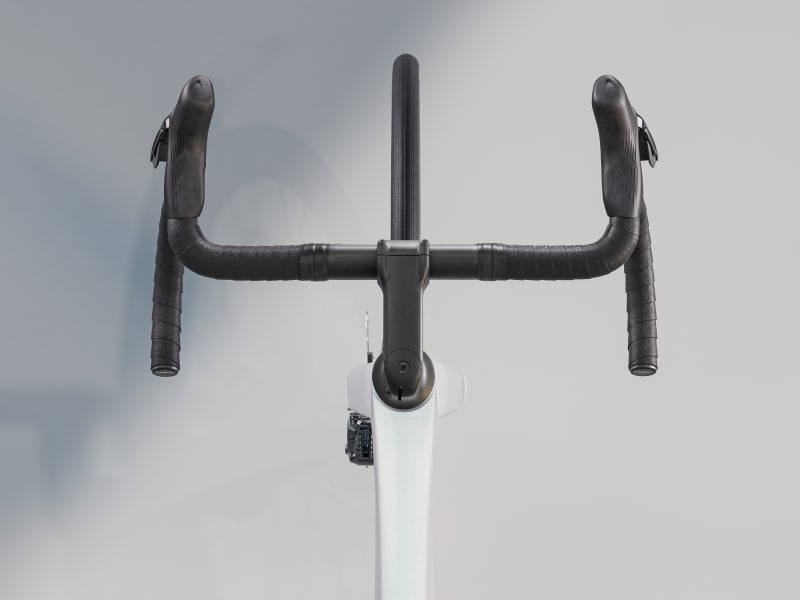

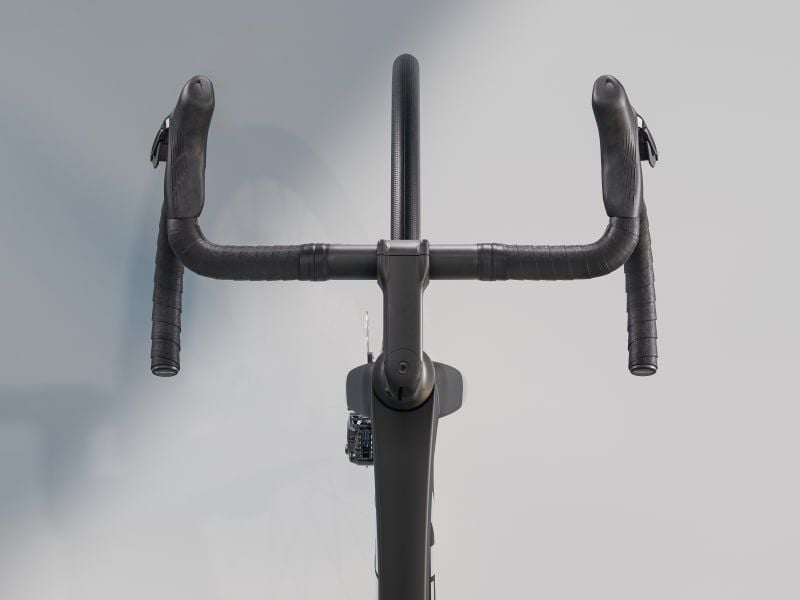

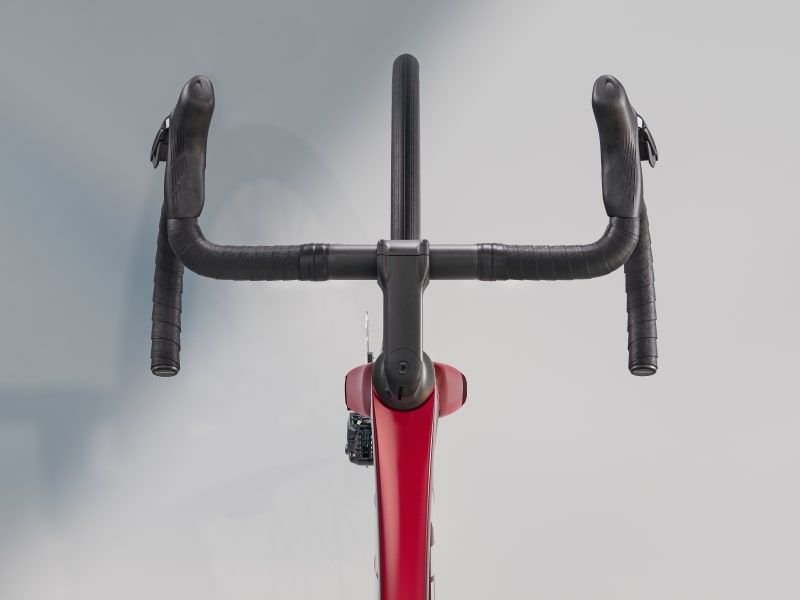

*Handlebar	Size: XS Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
	Size: S, M Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
	Size: ML, L Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
	Size: XL Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar tape	Trek EcoTack, black
*Stem	Size: XS Trek RCS Pro, -7 degree, 80mm length
	Size: S, M Trek RCS Pro, -7 degree, 90mm length
	Size: ML, L Trek RCS Pro, -7 degree, 100mm length
	Size: XL Trek RCS Pro, -7 degree, 110mm length
Brake rotor	Shimano RT70, centerlock, 160mm
Rotor size	Max brake rotor sizes: 180mm front, 160mm rear

Weight

Weight	ML - 8.16 kg / 17.99 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

All measurements provided in cm unless otherwise noted.

Sizing table
Frame size letter	Wheel size	A — Seat tube	B — Seat tube angle	C — Head tube length	D — Head angle	E — Effective top tube	G — Bottom bracket drop	H — Chainstay length	I — Offset	J — Trail	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack	Saddle rail height min (w/short mast)	Saddle rail height max (w/short mast)	Saddle rail height min (w/tall mast)	Saddle rail height max (w/tall mast)
XS	700c	40.4	73.8°	10.0	71.6°	51.7	7.2	41.0	5.0	6.1	97.1	70.9	37.0	50.7	54.9	61.2	59.2	65.4
S	700c	44.0	73.8°	12.1	72.2°	53.2	7.2	41.0	4.5	6.2	97.6	74.0	37.8	53.0	58.5	64.8	62.8	69.0
M	700c	47.6	73.6°	13.6	72.9°	54.5	7.0	41.0	4.5	5.8	98.1	76.8	38.4	54.6	62.1	68.4	66.4	72.6
ML	700c	51.2	73.4°	15.0	73.5°	55.7	7.0	41.0	4.0	5.9	98.0	79.4	38.9	56.2	65.7	72.0	70.0	76.2
L	700c	54.8	73.4°	17.2	73.8°	56.8	6.8	41.1	4.0	5.7	99.0	82.5	39.4	58.2	69.3	75.6	73.6	79.8
XL	700c	60.9	73.4°	20.1	73.9°	58.4	6.8	41.2	4.0	5.7	100.7	86.9	40.2	61.0	75.4	81.7	79.7	85.9

size-table
Size	Rider Height	Inseam
XS	143 - 158 cm 4'8" - 5'2"	67 - 74 cm 26" - 29"
S	158 - 162 cm 5'2" - 5'4"	74 - 76 cm 29" - 30"
M	162 - 173 cm 5'4" - 5'8"	76 - 81 cm 30" - 32"
ML	173 - 179 cm 5'8" - 5'10"	81 - 84 cm 32" - 33"
L	179 - 188 cm 5'10" - 6'2"	84 - 88 cm 33" - 35"
XL	188 - 213 cm 6'2" - 7'0"	88 - 100 cm 35" - 39"
